SAP ABAP FOR BEST PRACTICE AND TRAVEL RELATED GUIDE: How to create ODATA Service with association in SAP ABAP.

How to create ODADA service with association in SAP ABAP.

ODATA service creation details.

Go to T-code:- SEGW

Create new project.

Insert project name, description and package name.

The name of the Project: NGS_104_CAMP and the Description: Campaign Project.

After creating the project right click on data model and import DDIC structure.

We have uploaded two structures here which were created in se11.

First is zcampcc.

Second is zcustcc.

Repeat the same process for zcustcc.

By selecting the checkbox Create default entity set, it will automatically create the entity set.

As shown below after importing the structure entity sets zcampccset and zcustccset are created.

The fields in zcampcc are as shown below.

Here the field column shows the name of the components in structure and the name column indicates the name in odata.

The fields of zcustcc are as shown below.

After uploading the structure.

Check the project consistency and generate runtime time objects(red color ball like icon).

If It shows warnings neglect that.

Go to service maintains, select the server which you are working with:

Select the register service button.

Enter the name of the package and select next.

Your project has been registered.

Go to runtime an artifact which contains the data provider and model provider class.

Here ZCL_ZNGS_104_CAMP_DPC_EXT is the data provider class.

And ZCL_ZNGS_104_CAMP_MPC_EXT is the model provider class.

Right click on the data provider class and select go to Abap workbench.

Go to inherited methods and you will see every uploaded structure will have five in build methods in inherited methods which are: ZCAMPCCSET_CREATE_ENTITY, ZCAMPCCSET_DELETE_ENTITY, ZCAMPCCSET_GET_ENTITY, ZCAMPCCSET_GET_ENTITYSET, ZCAMPCCSET_UPDATE_ENTITY and same would be for zcustcc.

Right click on ZCAMPCCSET_GET_ENTITYSET and click redefinition.

Now this method will be shown in redefinition folder.

Now copy paste the below code in each method:

Activate each method after copying the code.

· Zcamp_get _entityset.

    METHOD ZCAMPCCSET_GET_ENTITYSET.
  DATA: IT_CAMP TYPE TABLE OF ZCAMPCC,
        WA_CAMP LIKE LINE OF IT_CAMP,
        WA_ENTITY LIKE LINE OF ET_ENTITYSET.
*Get data from ZCAMPAIGN_DEMO table
  SELECT * FROM ZCAMPCC INTO TABLE IT_CAMP.
*FILL ET_ENTITYSET
  LOOP AT IT_CAMP INTO WA_CAMP.
    MOVE-CORRESPONDING WA_CAMP TO WA_ENTITY.
    APPEND WA_ENTITY TO ET_ENTITYSET.
  ENDLOOP.

ENDMETHOD.

· Zcamp_get_entity.

METHOD ZCAMPCCSET_GET_ENTITY.
  DATA: LS_KEY_TAB LIKE LINE OF IT_KEY_TAB,"TYPE /IWBEP/T_MGW_NAME_VALUE_PAIR,
        LV_ID TYPE ZCAMPCC-C_ID,
        WA_COMP TYPE ZCAMPCC.

*Get the key property values
  READ TABLE IT_KEY_TAB WITH KEY NAME = 'CId' INTO LS_KEY_TAB.
  LV_ID = LS_KEY_TAB-VALUE.

*Get the single record from ZCAMPAIGN_DEMO and fill er_entity

  SELECT SINGLE * FROM ZCAMPCC INTO WA_COMP WHERE C_ID = LV_ID.
  IF SY-SUBRC = 0.
    MOVE-CORRESPONDING WA_COMP TO ER_ENTITY.
  ENDIF.

· Zcamp_create_entity

METHOD ZCAMPCCSET_CREATE_ENTITY.

  DATA: LS_REQUEST_INPUT_DATA TYPE ZCL_ZNGS_104_CAMP_MPC=>TS_ZCAMPCC,
        WA_COMP TYPE ZCAMPCC.
* Read Request Data
  IO_DATA_PROVIDER->READ_ENTRY_DATA( IMPORTING ES_DATA = LS_REQUEST_INPUT_DATA ).
* Fill workarea to be inserted
  MOVE-CORRESPONDING LS_REQUEST_INPUT_DATA TO WA_COMP.
* Insert Data in table ZUSERINFO
  INSERT ZCAMPCC FROM WA_COMP.
  IF SY-SUBRC = 0.
    ER_ENTITY = LS_REQUEST_INPUT_DATA. "Fill Exporting parameter ER_ENTITY
  ENDIF.

· Zcamp_update_entity

DATA:   LS_REQUEST_INPUT_DATA TYPE ZCL_ZNGS_104_CAMP_MPC=>TS_ZCAMPCC,
          LS_KEY_TAB        LIKE LINE OF IT_KEY_TAB,
          LV_ID             TYPE ZCAMPCC-C_ID,
          WA_COMP           TYPE ZCAMPCC.
* Get key values
  READ TABLE IT_KEY_TAB WITH KEY NAME = 'CId' INTO LS_KEY_TAB.
  LV_ID = LS_KEY_TAB-VALUE.
  IF LV_ID IS NOT INITIAL.

* Read request data
    IO_DATA_PROVIDER->READ_ENTRY_DATA( IMPORTING ES_DATA = LS_REQUEST_INPUT_DATA ).

* Update fields of table ZUSERINFO
    UPDATE ZCAMPCC SET        C_NAME  = LS_REQUEST_INPUT_DATA-C_NAME
                              C_TYPE    = LS_REQUEST_INPUT_DATA-C_TYPE
                              C_GRP     = LS_REQUEST_INPUT_DATA-C_GRP
                              C_TCUST  = LS_REQUEST_INPUT_DATA-C_TCUST
                              C_EXE    = 'X'""LS_REQUEST_INPUT_DATA-C_EXE'
                          WHERE C_ID  = LV_ID.
    IF SYSUBRC = 0.

      ER_ENTITY = LS_REQUEST_INPUT_DATA. "Fill exporting parameter ER_
  else.
    er_entity-c_err = 'Error in Update'.

ENDIF.

· Zcamp_delete_entity.

METHOD ZCAMPCCSET_DELETE_ENTITY.

  DATA:  LS_KEY_TAB LIKE LINE OF IT_KEY_TAB,
        LV_ID TYPE ZCAMPCC-C_ID.

* Read key values
  READ  TABLE IT_KEY_TAB INTO LS_KEY_TAB WITH KEY NAME = 'CId'.
  LV_ID = LS_KEY_TAB-VALUE.
  IF LV_ID IS NOT INITIAL.
* Delete record from table ZUSERINFO
    DELETE FROM ZCAMPCC WHERE C_ID = LV_ID.
  ENDIF.

ENDMETHOD.

Zcust_get_entityset.

DATA: IT_COMP TYPE TABLE OF ZCUSTCC,
        WA_COMP LIKE LINE OF IT_COMP,
        WA_ENTITY LIKE LINE OF ET_ENTITYSET.

*Get data from ZCAMPAIGN_DEMO table
  SELECT * FROM ZCUSTCC INTO TABLE IT_COMP.

*FILL ET_ENTITYSET
  LOOP AT IT_COMP INTO WA_COMP.
    WA_ENTITY-CUST_ID = WA_COMP-CUST_ID.
    WA_ENTITY-CUST_NAME = WA_COMP-CUST_NAME.
    WA_ENTITY-CUST_EID = WA_COMP-CUST_EID.
    WA_ENTITY-C_GRP = WA_COMP-C_GRP.
    WA_ENTITY-C_TYPE = WA_COMP-C_TYPE.

    APPEND WA_ENTITY TO ET_ENTITYSET.
  ENDLOOP.

Zcust_get_entity.

DATA: LS_KEY_TAB LIKE LINE OF IT_KEY_TAB,"TYPE /IWBEP/T_MGW_NAME_VALUE_PAIR,
        LV_ID TYPE ZCUSTCC-CUST_ID,
        WA_COMP TYPE ZCUSTCC.

*Get the key property values
  READ TABLE IT_KEY_TAB WITH KEY NAME = 'CustId' INTO LS_KEY_TAB.
  LV_ID = LS_KEY_TAB-VALUE.

*Get the single record from ZCAMPAIGN_DEMO and fill er_entity

  SELECT SINGLE * FROM ZCUSTCC INTO WA_COMP WHERE CUST_ID = LV_ID.
  IF SY-SUBRC = 0.

MOVE-CORRESPONDING WA_COMP TO ER_ENTITY.

ENDIF.

Zcust_create_entity.

  DATA: LS_REQUEST_INPUT_DATA TYPE ZCL_ZNGS_104_CAMP_MPC=>TS_ZCUSTCC,
       WA_COMP TYPE ZCUSTCC.

* Read Request Data
  IO_DATA_PROVIDER->READ_ENTRY_DATA( IMPORTING ES_DATA = LS_REQUEST_INPUT_DATA ).

* Fill workarea to be inserted
  MOVE-CORRESPONDING LS_REQUEST_INPUT_DATA TO WA_COMP.
* Insert Data in table ZUSERINFO
  INSERT ZCUSTCC FROM WA_COMP.
  IF SY-SUBRC = 0.
    ER_ENTITY = LS_REQUEST_INPUT_DATA. "Fill Exporting parameter ER_ENTITY
  ENDIF.

Zcust_update_entity.

DATA:  LS_REQUEST_INPUT_DATA TYPE ZCL_ZNGS_104_CAMP_MPC=>TS_ZCUSTCC ,
         LS_KEY_TAB            LIKE LINE OF IT_KEY_TAB,
         LV_ID             TYPE ZCUSTCC-CUST_ID,
         WA_COMP           TYPE ZCUSTCC.
* Get key values
  READ TABLE IT_KEY_TAB WITH KEY NAME = 'CustId' INTO LS_KEY_TAB.
  LV_ID = LS_KEY_TAB-VALUE.
  IF LV_ID IS NOT INITIAL.

* Read request data
    IO_DATA_PROVIDER->READ_ENTRY_DATA( IMPORTING ES_DATA = LS_REQUEST_INPUT_DATA ).

* Update fields of table ZUSERINFO
    UPDATE ZCUSTCC SET           CUST_ID = LS_REQUEST_INPUT_DATA-CUST_ID
                                 CUST_NAME  = LS_REQUEST_INPUT_DATA-CUST_NAME
                                 CUST_EID  = LS_REQUEST_INPUT_DATA-CUST_EID
                                 C_TYPE    = LS_REQUEST_INPUT_DATA-C_TYPE
                                 C_GRP     = LS_REQUEST_INPUT_DATA-C_GRP
                          WHERE  CUST_ID  = LV_ID.
    IF SY-SUBRC = 0.
      ER_ENTITY = LS_REQUEST_INPUT_DATA. "Fill exporting parameter ER_ENTITY
    ENDIF.
  ENDIF.

Zcust_delete_entity.

DATA:  LS_KEY_TAB LIKE LINE OF IT_KEY_TAB,
      LV_ID TYPE ZCUSTCC-CUST_ID.

* Read key values
  READ  TABLE IT_KEY_TAB INTO LS_KEY_TAB WITH KEY NAME = 'CustId'.
  LV_ID = LS_KEY_TAB-VALUE.
  IF LV_ID IS NOT INITIAL.
* Delete record from table ZUSERINFO
    DELETE FROM ZCUSTCC WHERE CUST_ID = LV_ID.
  ENDIF.

For Creating association :

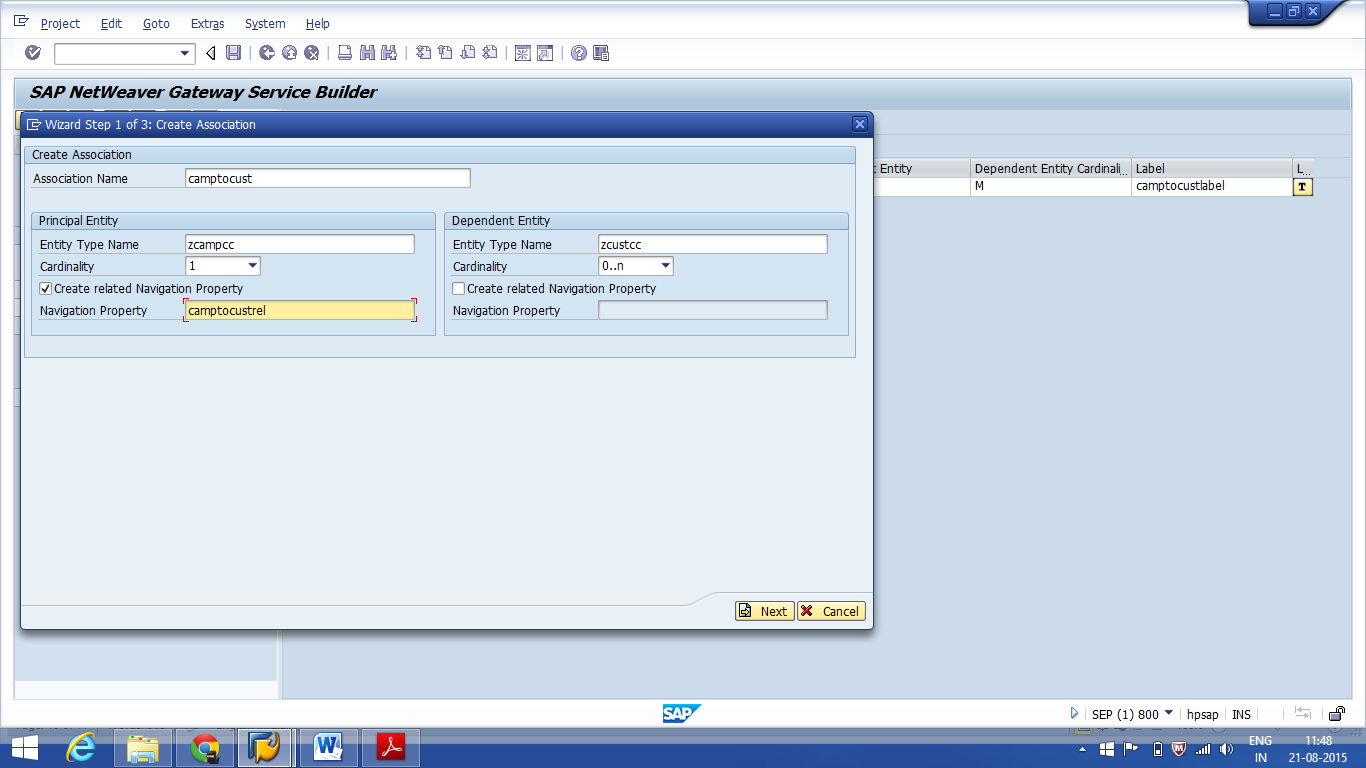

Go to association folder and right click and click create.

Fill the following details as shown below.
